Current sensor modules
Sinomags current sensor modules – coreless measurement systems for automotive and industrial applications
Sensitec GmbH
Schanzenfeldstr. 2
35578 Wetzlar
Sinomags current sensor modules – coreless measurement systems for automotive and industrial applications
Sinomags current sensor modules are based on TMR technology, the Hall effect or the fluxgate principle, and consist of the sensor element combined with signal processing electronics. Depending on the model, these modules provide either an output voltage or an output current. The current sensors therefore cover a wide range of applications across a diverse array of end-use applications.
High-bandwidth current sensors for high-frequency applications
Below you will find a further selection of different sensor modules.
The STK-600 product series comprises open-loop current transformers based on TMR (Tunnel MagnetoResistive) technology. It is suitable for measuring DC, AC, pulsating and any irregular currents, with galvanic isolation between the primary and secondary sides.
The rated current range of the STK-600 series is 50 A to 100 A, with a maximum measurement range of 400 A.
The STK-600 series is available in the PFF, PSF and PSS lead configurations.
The STK-600/F has a rated current range of 50 A and a maximum measurement range of 300 A.
Open-loop TMR technology.
Technical documents
• Data sheet
• CAD model
Digikey Online Shop
The STK-600/M’s rated current range is 50 A and 100 A, whilst the maximum measurement range is 400 A.
Open-loop TMR technology.
Technical documents
• Data sheet
• CAD model PFF lead form
Digikey Online Shop
The STK-600/M-M has a rated current range of 50 A and 100 A, with a maximum measurement range of 400 A.
Open-loop TMR technology.
Technical documents
• Data sheet
• CAD model PFF lead form
• CAD model PSF lead form
Digikey Online Shop
Advantages
Applications
Product details

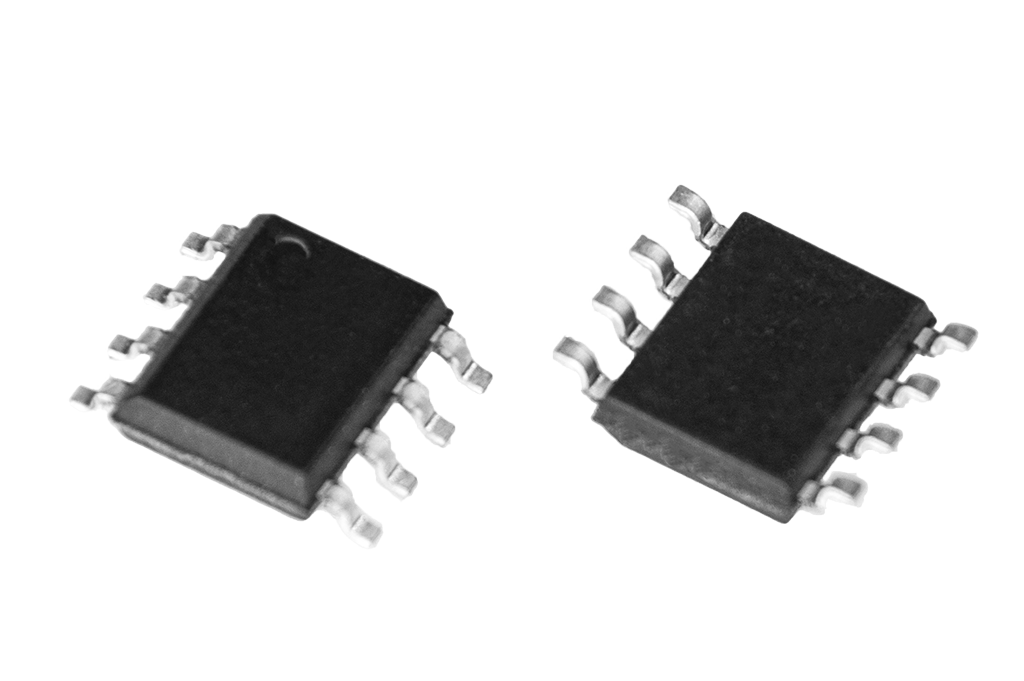

The STK-616 product series in an SOIC8 package comprises coreless open-loop current transducers based on TMR (Tunnel MagnetoResistive) technology. It is suitable for measuring DC, AC, pulsating and any irregular currents, with galvanic isolation between the primary and secondary sides.
The rated current range of the STK-616 series is 10 A to 65 A, with a maximum measurement range of 65 A.
The STK-616ZMF features a reference voltage output, whilst the STK-616ZMT features an overcurrent detection output.
The rated current range and maximum measurement range of the STK-616ZMF are 10 A, 20 A, 25 A, 30 A, 40 A, 50 A and 65 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616ZMT are 10 A, 20 A, 30 A, 40 A, 50 A and 65 A respectively.
Coreless open-loop TMR technology.
OCD function (overcurrent detection)
Technical documents
• Data sheet
Advantages
Applications
Product details
The STK-616 product series in a SOIC10 package comprises core-less open-loop current transducers based on TMR (Tunnel MagnetoResistive) technology. It is suitable for measuring DC, AC, pulsating and any irregular currents, with galvanic isolation between the primary and secondary sides. The STK-616 series features a built-in OCD (overcurrent detection) function.
The rated current range of the STK-616 series is 20 A to 200 A, with a maximum measurement range of 200 A.
The rated current range and maximum measurement range of the STK-616AM3 are 50 A, 66 A, 75 A, 80 A, 90 A, 95 A, 100 A, 108 A, 120 A, 150 A and 180 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616AM5 are 20 A, 25 A, 40 A, 50 A, 55 A, 60 A, 80 A, 100 A, 120 A, 166 A, 180 A and 200 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616AM8 are 50 A, 80 A, 90 A, 100 A, 133 A and 150 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
Advantages
Applications
Product details

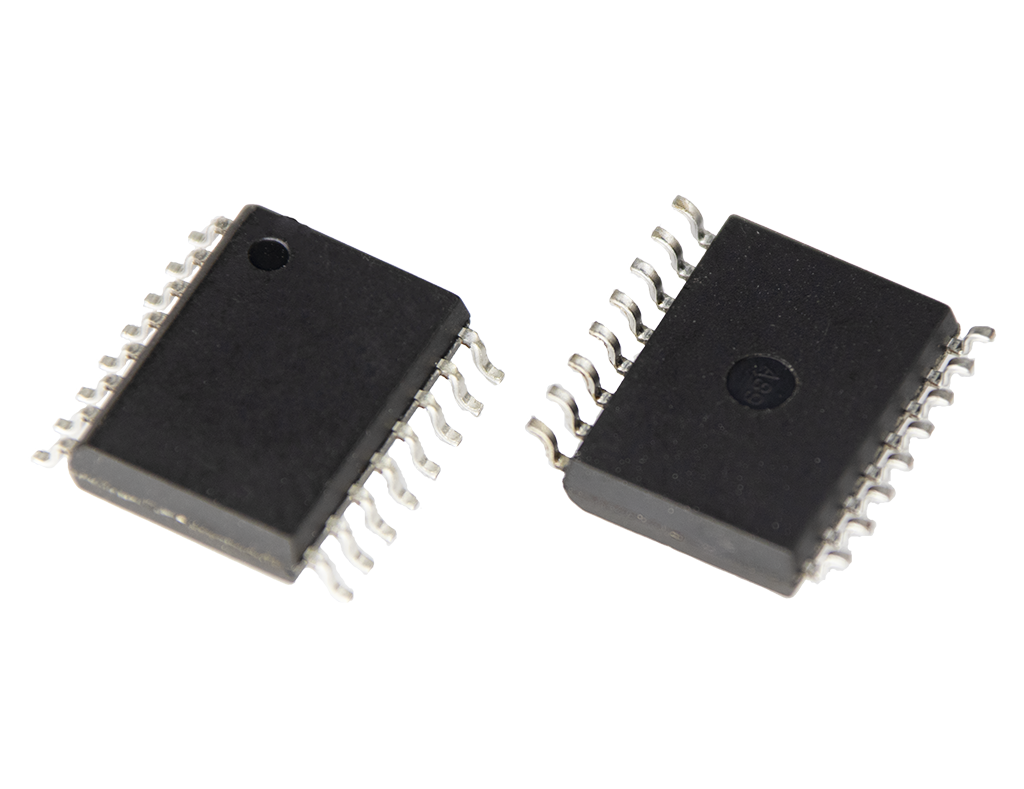

The STK-616 product series in a SOIC16 package comprises coreless open-loop current transducers based on TMR (Tunnel MagnetoResistive) technology. It is suitable for measuring DC, AC, pulsating and any irregular currents, with galvanic isolation between the primary and secondary sides. The STK-616 series features a built-in OCD (overcurrent detection) function.
The rated current range of the STK-616 series is 20 A to 200 A, with a maximum measurement range of 200 A.
The rated current range and maximum measurement range of the STK-616BML are 6.5 A, 13 A, 15 A, 28 A, 56 A and 65 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616DML are 6 A, 12 A, 20 A and 25 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616HM are 10 A, 15 A, 20 A and 30 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616KMF are 20 A, 30 A, 40 A and 65 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-616T are 10 A, 20 A, 30 A, 33 A, 40 A, 50 A, 65 A, 66 A, 75 A, 100 A and 133 A respectively.
Coreless open-loop TMR technology.
STK-616TMF: 1.5 MHz bandwidth
STK-616TML: 600 kHz bandwidth
Technical documents
• Data sheet STK-616TMF
• Data sheet STK-616TML
Advantages
Applications
Product details

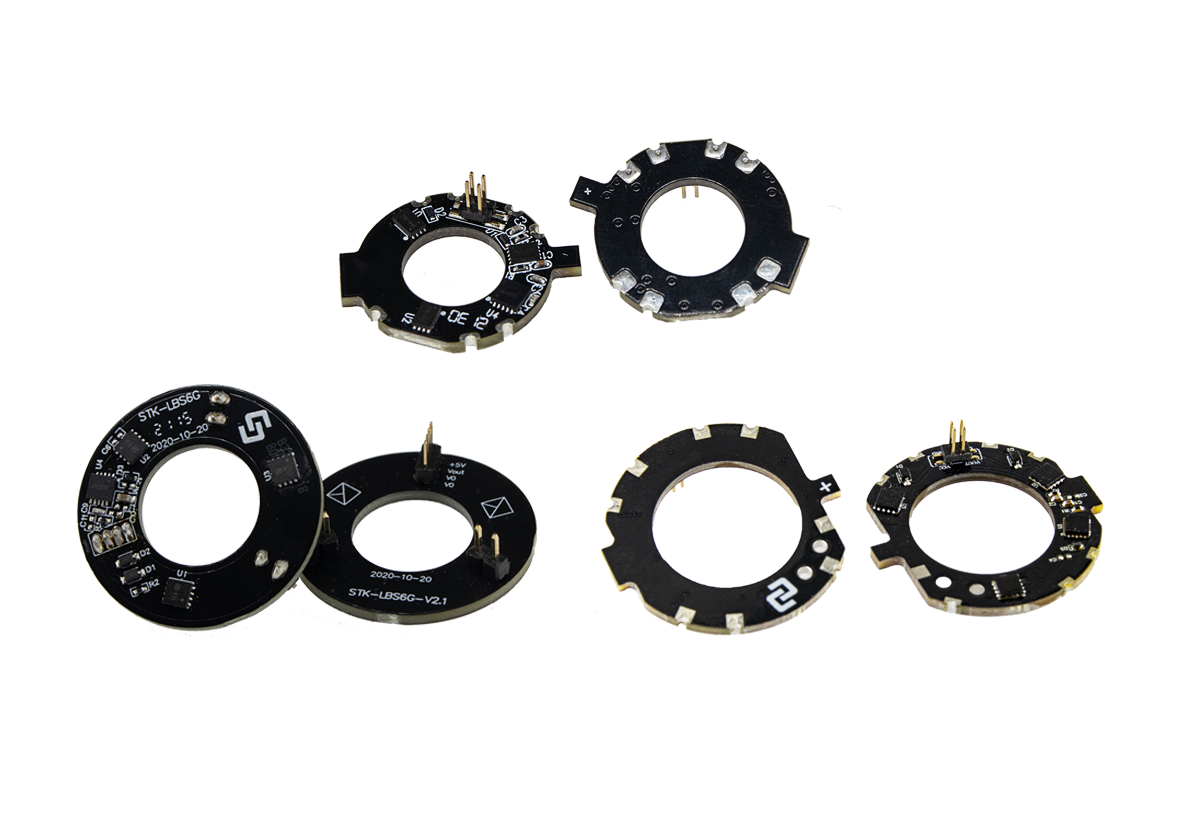

The STK-LBS product range comprises coreless open-loop current transformers based on TMR (Tunnel MagnetoResistive) technology. It is suitable for measuring DC, AC, pulsating and any irregular currents, with galvanic isolation between the primary and secondary sides.
The rated current range of the STK-LBS series is 100 A to 1,500 A, with a maximum measurement range of 1,500 A.
The rated current range and maximum measurement range of the STK-LBS/6G are 100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 700 A, 800 A, 900 A and 1,000 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-LBS/S is 200 A.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
The rated current range and maximum measurement range of the STK-LBS/S2 are 400 A, 500 A, 600 A, 800 A, 1,000 A and 1,500 A respectively.
Coreless open-loop TMR technology.
Technical documents
• Data sheet
Advantages
Applications
Product details
